Data Model
This guide introduces the core resource types available in SavvyCal Appointments to help you plan your integration.
Accounts
An Account represents an organization in SavvyCal and serves as the core tenancy boundary for all resources in the system.
Account Users
An AccountUser represents a user's membership in an account, including their assigned roles.
AccountUser ─┬─ has one ───▶ User
└─ has many ──▶ Roles
Key properties of an account user include:
| Property | Type | Description |
|---|---|---|
user | User | The underlying user, with id, first_name, last_name, and email. |
roles | array of Role | The roles assigned to the user. Each role has a name and a type. |
passive | boolean | Whether this user is passive. Passive users don't receive direct email notifications (e.g., OAuth reconnection notices). |
Role types include: admin, staff, developer, superuser, and custom.
See the AccountUser schema for complete details.
Providers
A Provider represents a staff member who provides services to clients. Providers are managed in the Staff section of the SavvyCal Dashboard.
Key properties of a provider include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the provider (e.g., prov_d025a96ac0c6). |
first_name | string | The first name of the provider. |
last_name | string | The last name of the provider. |
display_name | string | The display name of the provider, including any title or designations (e.g., "Dr. Evelyn Brooks"). |
See the Provider schema for complete details.
Provider Schedules
A ProviderSchedule defines working hours for a provider over a date range.
Key properties of a provider schedule include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the schedule (e.g., psch_d025a96ac0c6). |
effective_from | string | The start date of the schedule (ISO date format). |
effective_to | string | null | The end date of the schedule, or null if open-ended. |
public_bookings | object | Public booking settings. Contains enabled (boolean) indicating whether public bookings are allowed. |
weekly_rules | array of WeeklyRule | Rules defining availability windows per day of the week. Each rule has a day (mo–su), start_time, and end_time. |
The slot availability logic described under Services uses provider schedules to determine a provider's working hours for a given date range.
See the ProviderSchedule schema for complete details.
Services
A Service represents a service offered by one or more Providers.

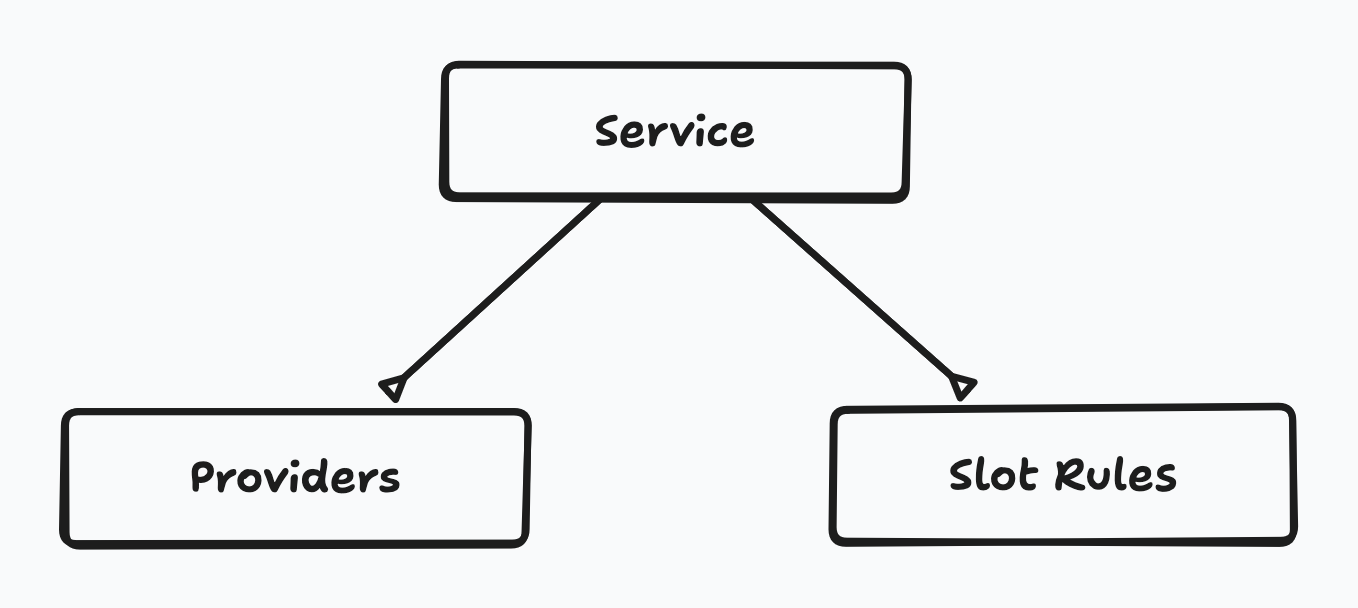

Service ─┬─ has many ──▶ Providers
└─ has many ──▶ Slot Rules
You can add one or more providers to a service (via the SavvyCal Dashboard or the Add provider to service API).
Key properties of a service include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the service (e.g., srv_d025a96ac0c6). |
name | string | The name of the service. |
duration | string | The duration of the service in ISO-8601 duration format (e.g., PT30M, PT1H30M). |
slot_rules | array of SlotRule | The rules that define the time slots available for the service (e.g., Monday through Friday, 9:00 AM - 5:00 PM, at the top of each hour). |
See the Service schema for complete details.
When calculating available time slots for a service provider, the system uses this logic:
- Generate all time slots defined by the slot rules for the service.
- Remove any time slots that are already booked, are marked as unavailable with a block, or fall outside the provider's configured working hours.
See the Slot Availability guide for a detailed explanation of how availability is calculated and how to query available time slots.
Blocks
A Block represents a range of blocked time that prevents bookings. Blocks can be attached to a provider, service, service_provider, or location.
Key properties of a block include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the block (e.g., blk_d025a96ac0c6). |
title | string | null | The title of the block. |
attachment_type | enum | The type of resource the block is attached to: provider, service, service_provider, or location. |
attachments | array | IDs of the attached resources (e.g., provider IDs, service IDs). |
start_date | string | The start date of the block (ISO date format). |
end_date | string | The end date of the block (ISO date format). |
start_time | string | null | The start time of the block (HH:MM format), or null if all-day. |
end_time | string | null | The end time of the block (HH:MM format), or null if all-day. |
time_zone | string | null | The time zone of the block (IANA format). |
all_day | boolean | Whether the block spans the entire day. |
recurrence_rule | object | null | An optional recurrence rule. Supports daily and weekly frequencies with byday, interval, count, and until options. |
See the Block schema for complete details.
Clients
A Client represents a person who has made (or will make) appointments with a Provider for a particular Service. SavvyCal uses the generic term "client" to remain industry-agnostic. For example, in healthcare contexts, a client is typically called a patient.
Key properties of a client include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the client (e.g., clnt_d025a96ac0c6). |
reference_id | string | The external reference identifier for the client—typically a primary key from your database that corresponds to the client. |
first_name | string | The first name of the client. |
last_name | string | The last name of the client. |
email | string | The email address of the client. |
phone | string | The phone number of the client. |
time_zone | string | The time zone of the client (IANA format). |
See the Client schema for complete details.
Appointments
An Appointment represents a booking that a Client has made with a Provider for a particular Service.

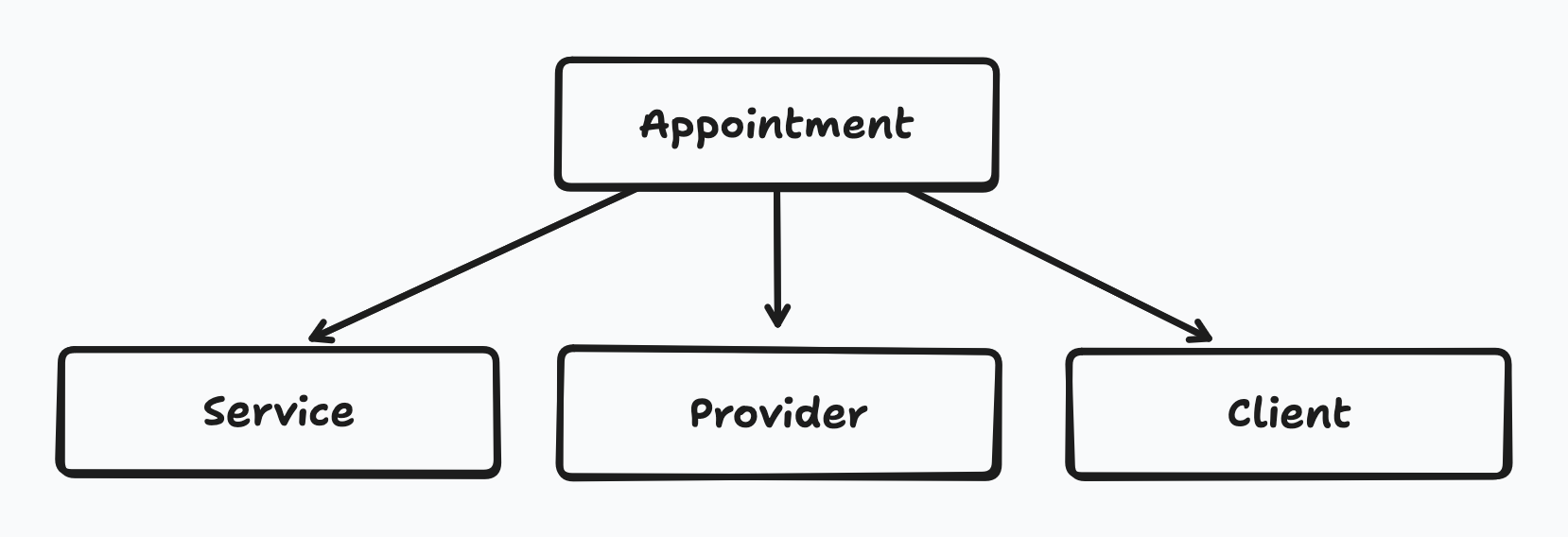

Appointment ─┬─ has one ──▶ Service
├─ has one ──▶ Provider
└─ has one ──▶ Client
Key properties of an appointment include:
| Property | Type | Description |
|---|---|---|
id | string | The unique identifier for the appointment (e.g., appt_d025a96ac0c6). |
status | enum | The status of the appointment—either scheduled or cancelled. |
client_reference_id | string | The external reference identifier for the client—typically a primary key from your database that corresponds to the client who made the appointment. |
client_time_zone | string | The client's time zone (IANA format). This field represents the appointment time slot in the client's local time zone when it differs from the appointment's local time zone. |
start_at | ZonedDateTime | The start time of the appointment. |
end_at | ZonedDateTime | The end time of the appointment. |
fields | object | A map of client data provided when the appointment was created (email, first_name, last_name, phone). |
See the Appointment schema for complete details.
Appointments can be created via the Create appointment API or the SavvyCal Booking Embed.
Booking Intents
A BookingIntent tracks the lifecycle of a multi-step booking attempt, enabling slot holding and progressive data collection before creating an appointment.
See the Booking Intents guide for a detailed walkthrough of the booking intent lifecycle, slot holding, and progressive client data collection.
See the BookingIntent schema for complete details.
